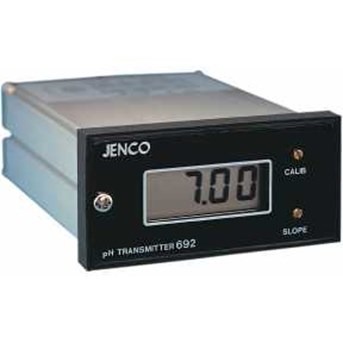

JENCO pH In-line Transmitter 692

Description 1/ 8 DIN panel mount pH transmitter with 4-20 mA output and calibration by potentiometers. ATC temperature control uses a Pt-100 or simulation resistor. Features a large LCD display and uses a BNC input and spade lug screw type connector block * All solid state design * ATC * Low power consumption design, reduced internal heating thus increased reliability * 0.56 high LCD display * Isolated 4 to 20 mA current output * High stability and fast response * 1/ 8 DIN standard aluminum case * Easy to install * Heat cycled 100 hours before shipment Specifications pH Range : 0.00 to 14.00 pH Resolution : 0.01pH Accuracy : ± 0.02 pH ± 1 LSD General * Input impedance: Greater than 10 to 12th ohms * Temp. compensation: Auto 0 to 100 ° C * Current output: Isolated 4 to 20 mA * Current accuracy: 0.1% * Max transmitter load: 600 ohms * Isolated voltage: 500 VDC min * Display: 0.56 high LCD * Power source: 115/ 230 VAC ± 10% , 50/ 60 hz * Dimensions: 96 mm x 48mm x 152mm * Weight: 0.58 kgs * Temperature sensor: Pt-100
